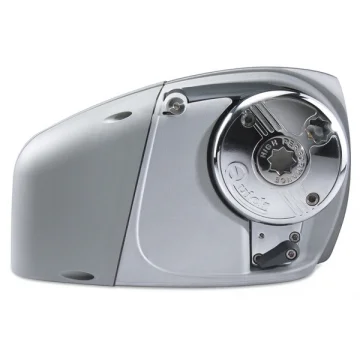

Quick HECTOR drumless model is a horizontal windlass. With 2300W motor power, 24V supply and 12/13 mm gypsy, it is a technically specified solution for 16-20 m boat lengths.

AISI 316 stainless steel, aluminum, chrome plating and composite materials are used in the body structure. The necessary sensor for the optional chain counter connection is mounted as standard on the windlass. The solenoid unit and crank handle are included in the standard equipment.

• Type: Horizontal windlass, drumless model
• Motor power: 2300W
• Voltage: 24V
• Gypsy: 12/13 mm
• Maximum pull: 2400 kg
• Maximum working load: 850 kg
• Working load: 285 kg
• Current at working load: 120A
• Retrieval speed (no load): 41.2 m/min.
• Retrieval speed (at working load): 23.3 m/min.
• Suitable boat length: 16-20m

• Anodized aluminum / composite body
• Manual release system
• Chain stripper bar
• Integrated solenoid unit
• IP66 class waterproof motor
• 8 mm gypsy: Suitable for 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Suitable for 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
• 12/13 mm gypsy: Suitable for 12 mm ISO, 13 mm DIN766 chains
