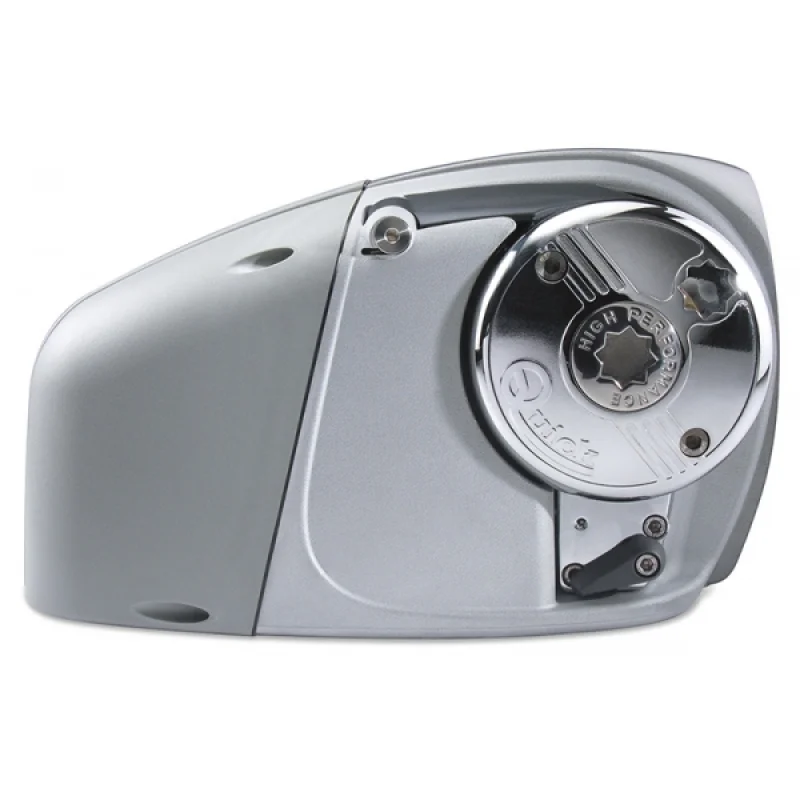

The Quick HECTOR horizontal windlass without gypsy is a solution for the anchoring system of boats 12-15 m in length, using a 10 mm chain gypsy, with a motor power of 1500W and a voltage of 12V.
Its body consists of anodized aluminum and composite materials. It offers the possibility of pulling 14/16/18 mm rope with its chain gypsy. It has an IP66 class waterproof motor structure. This model of the series, which comes in versions with or without a gypsy, is without a gypsy.
- Motor power: 1500W
- Voltage: 12V
- Gypsy: 10 mm
- Maximum pull: 1500 kg
- Maximum working load: 450 kg
- Working load: 150 kg
- Current at working load: 150A
- Winding speed (no load): 37.5 m/min.
- Winding speed (at working load): 17.8 m/min.
- Suitable boat length: 12–15 m
The 8 mm gypsy can be used with 8 mm DIN766, 8 mm ISO, 5/16" G4 and 5/16" BBB chains; the 10 mm gypsy with 10 mm DIN766, 10 mm ISO and 3/8" G4 chains; and the 12/13 mm gypsy with 12 mm ISO and 13 mm DIN766 chains. It features a sensor for an optional chain counter connection, an integrated solenoid unit, a chain stripper bar, and a manual release system.
