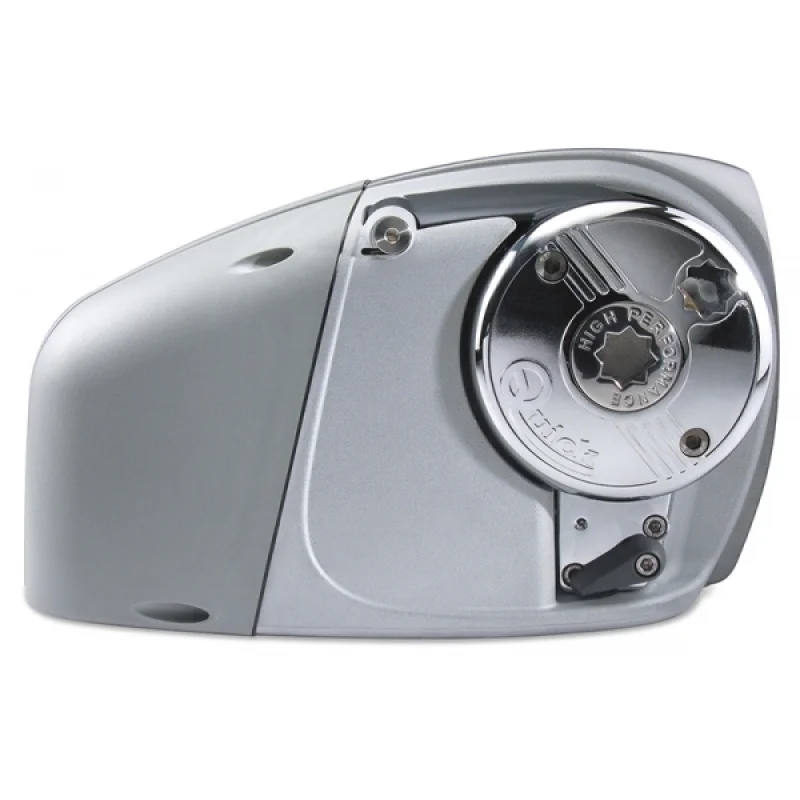

The Quick HECTOR drumless model is a horizontal windlass designed with a 1500W motor power, 24V supply, and a 10 mm chain gypsy. It features a body structure manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials.

It comes standard with the necessary sensor for an optional chain counter connection. The solenoid unit and winch handle are among the standard equipment. It features an IP66-rated waterproof motor and is CE certified.

• Type: Horizontal windlass
• Model: Drumless
• Motor power: 1500W
• Voltage: 24V
• Gypsy: 10 mm
• Maximum pull: 1500 kg
• Maximum working load: 550 kg
• Working load: 185 kg
• Current at working load: 85A
• Winding speed (no load): 40 m/min.
• Winding speed (at working load): 19.2 m/min.
• Suitable boat length: 12–15 m
• Body: Anodized aluminum / composite
• Manual release system
• Chain stripper bar
• Integrated solenoid unit
• IP66 waterproof motor
• CE certified

• 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
• 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766 chains
