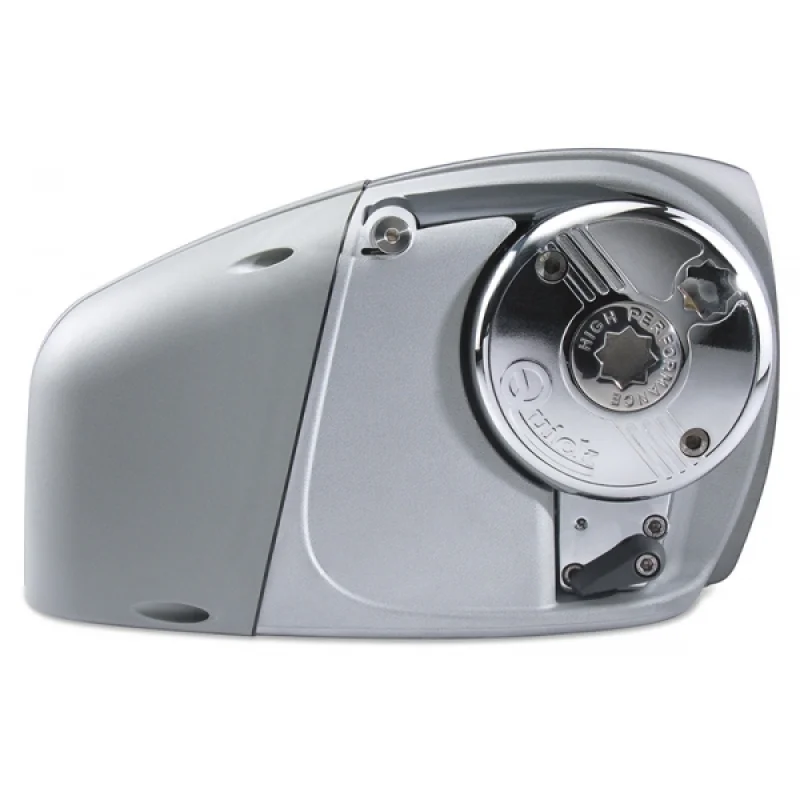

The Quick HECTOR horizontal windlass without gypsy is a model that operates with a 1500W motor power and 12V supply, featuring an 8 mm chain gypsy. It is manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials.

The necessary sensor for the optional chain counter connection is mounted as standard on the windlass. The solenoid unit and winch handle are among the standard equipment. The body structure is anodized aluminum/composite, and the series offers options with or without a gypsy. It features a structure that allows for pulling 14/16/18 mm rope with the chain gypsy and includes a manual release system. It is equipped with a chain press bar and an IP66-rated waterproof motor.

• Model: Quick HECTOR, horizontal windlass without gypsy
• Motor Power: 1500W
• Voltage: 12V
• Gypsy: 8 mm
• Maximum Pull: 1500 kg
• Maximum Working Load: 450 kg
• Working Load: 150 kg
• Current at Working Load: 150A
• Winding Speed (No Load): 37.5 m/min
• Winding Speed (at Working Load): 17.8 m/min
• Suitable Boat Length: 12–15 m

• Horizontal windlass design
• Anodized aluminum / composite body
• Series options with or without gypsy
• Capability to pull 14/16/18 mm rope with chain gypsy
• Manual release system
• Chain press bar
• Integrated solenoid unit
• IP66-rated waterproof motor
• 8 mm gypsy: Compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: Compatible with 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
• 12/13 mm gypsy: Compatible with 12 mm ISO, 13 mm DIN766 chains
