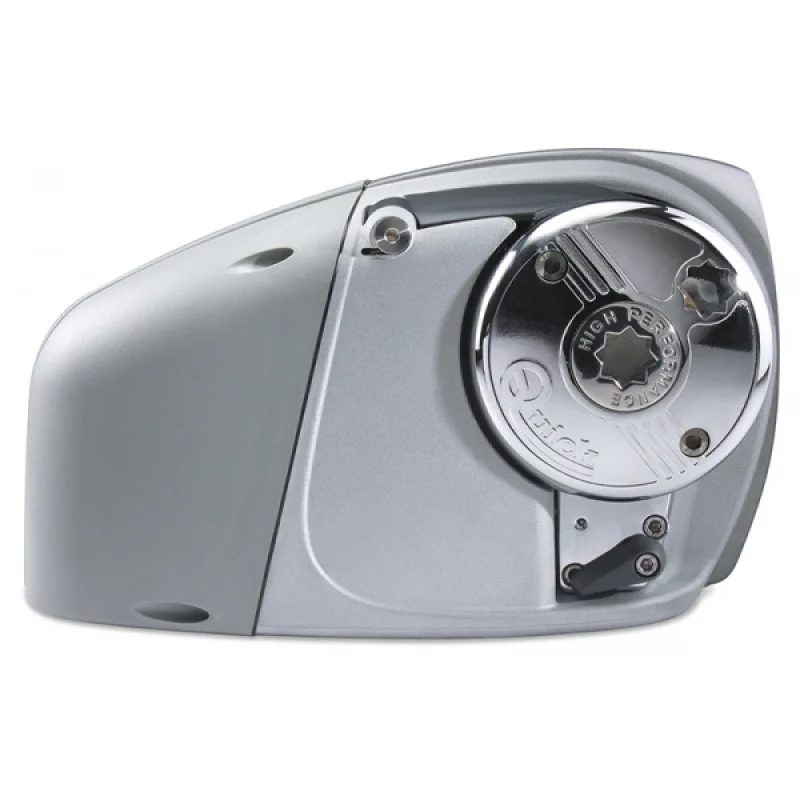

The Quick HECTOR horizontal windlass without gypsy is a model that operates with a 700W motor power and 24V supply, featuring an 8 mm chain size. It is manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials and is CE certified.

It comes standard with the necessary sensor for an optional chain counter connection. The solenoid unit and winch handle are among the standard equipment. It has an IP66-rated waterproof motor structure.

• Motor power: 700W
• Voltage: 24V
• Chain: 8 mm
• Maximum pull: 1100 kg
• Maximum working load: 300 kg
• Working load: 125 kg
• Current at working load: 50 A
• Winding speed (no load): 29.2 m/min
• Winding speed (at working load): 15.2 m/min
• Suitable boat length: 7–10 m
• Body: Anodized aluminum / composite
• Model type: Horizontal windlass, without gypsy
• Manual release system and chain stripper bar
• Integrated solenoid unit
• IP66-rated motor
• 8 mm chain; compatible with 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
