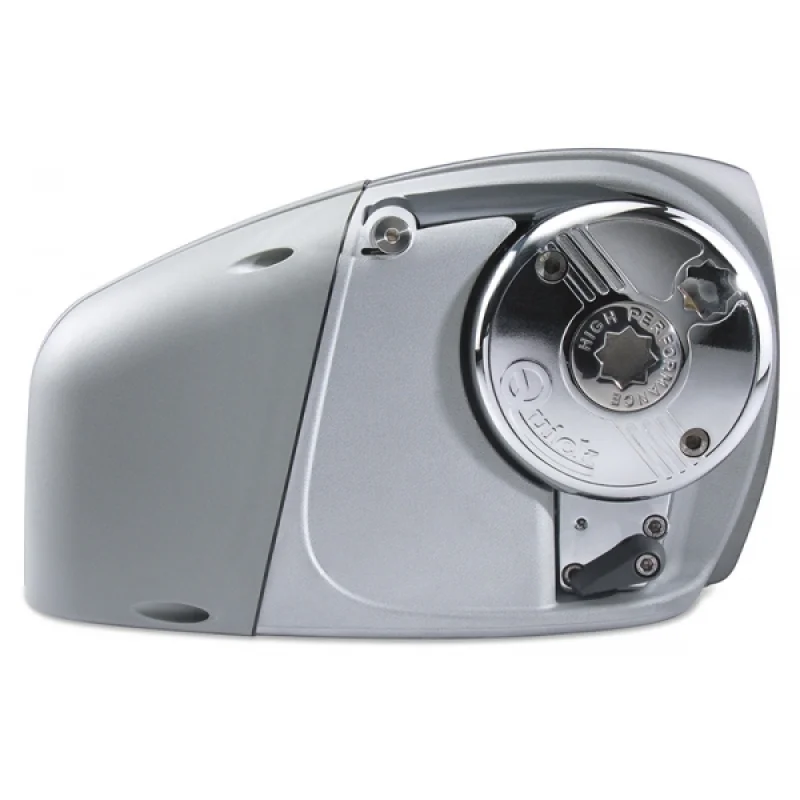

The Quick HECTOR horizontal windlass without gypsy is a model that operates with a 1000W motor power and 24V supply, featuring an 8 mm chain gypsy. It is suitable for boats in the 10-13 meter length range.

Its body is manufactured from anodized aluminum and composite material. AISI 316 stainless steel, aluminum, chrome plating, and composite components are used. It is CE certified.

• Model: Quick HECTOR, without gypsy
• Type: Horizontal windlass
• Motor power: 1000W
• Voltage: 24V
• Gypsy: 8 mm
• Maximum pull: 1100 kg
• Maximum working load: 490 kg
• Working load: 160 kg
• Current at working load: 80A
• Winding speed (no load): 39.6 m/min
• Winding speed (at working load): 21 m/min
• Suitable boat length: 10-13 m

• Anodized aluminum / composite body
• Series available with or without gypsy; this model is without gypsy
• Capability to pull 14/16/18 mm rope with the chain gypsy
• Manual release system
• Chain stripper bar
• Integrated solenoid unit
• IP66 class waterproof motor
• 8 mm gypsy: suitable for 8 mm DIN766, 8 mm ISO, 5/16" G4, 5/16" BBB chains
• 10 mm gypsy: suitable for 10 mm DIN766, 10 mm ISO, 3/8" G4 chains
• 12/13 mm gypsy: suitable for 12 mm ISO, 13 mm DIN766 chains
• Sensor for optional chain counter connection is standard mounted on the windlass
• Solenoid and remote control are standard equipment
