In stock

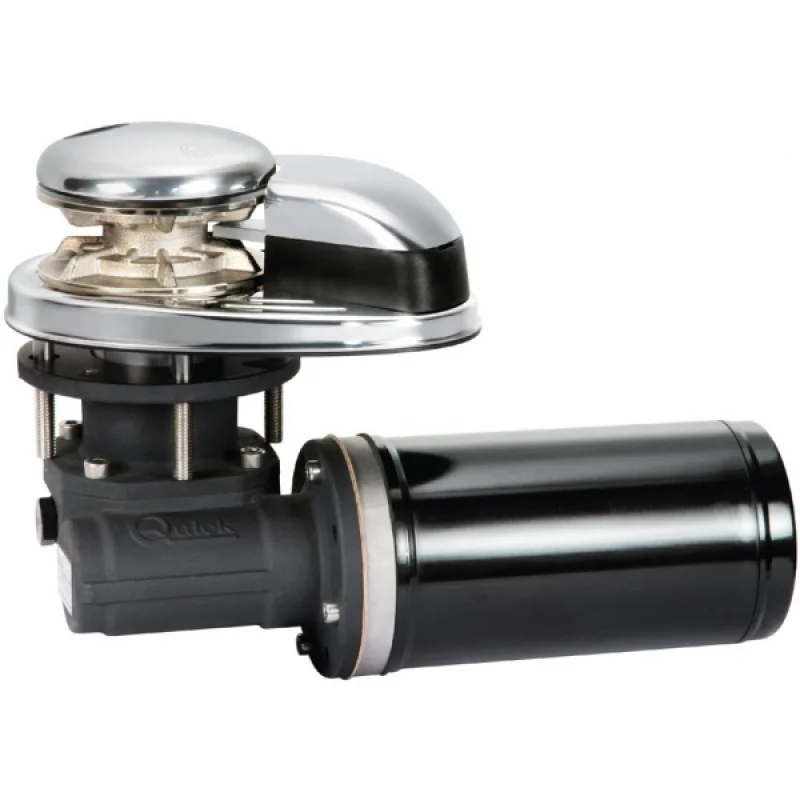

The Quick Prince DP3 model vertical windlass operates without a gypsy, with a power of 1500W and runs on a 24 V supply. It features an 8 mm chain gypsy.

Model	DP3
Power	1500W
Voltage	24 V
Gypsy	8 mm
Type	Vertical windlass, model without gypsy
Body material	AISI 316 stainless steel body, gearbox with anodized aluminum housing
Working load	180 kg
Protection class	IP67 class waterproof motor (on 1500W model)

Manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials suitable for marine conditions.
CE approved.
A sensor for optional chain counter connection is standardly mounted on the windlass.
Solenoid and remote control are standard equipment.
Options with or without a gypsy are available.
Offers the capability to pull 12/14 mm rope with the chain gypsy.
Features a manual free-fall system and a chain stripper bar.
Compatible with 6 mm gypsy, 6 mm DIN766, and 6 mm ISO chains.
Compatible with 8 mm gypsy, 8 mm DIN766, 8 mm ISO, 5/16" G4, and 5/16" BBB chains.
Compatible with 10 mm gypsy, 10 mm ISO, and 3/8" G4 chains.
