It is manufactured from AISI 316 stainless steel, aluminum, chrome plating, and composite materials, fully compatible with marine conditions. Designed with superior quality and excellent design to require no service for a long time. It is CE approved. The necessary sensor for the optional chain counter connection is mounted as standard on the windlass. Solenoid and crank handle are standard equipment.

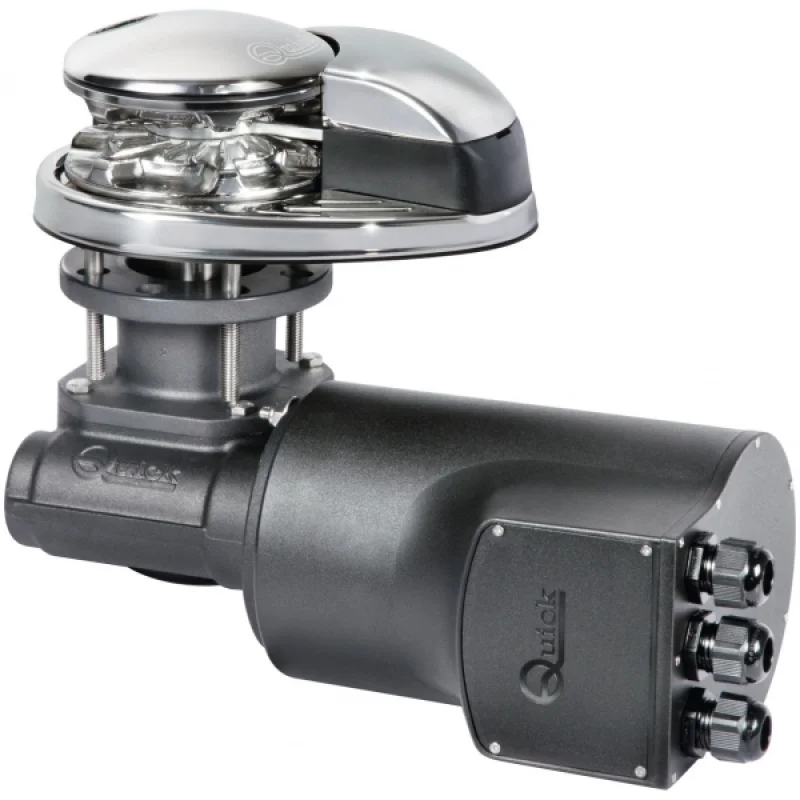

• Vertical windlass
• Working load 100 kg

• AISI 316 stainless steel body

• With drum or drumless

• Capable of pulling 12/14 mm rope with chain gypsy

• Manual Free-Fall system

• Chain stripper bar

• IP67 class waterproof motor (in 700W, 1000W, 1500W models)

• Anodized aluminum body gearbox

• 6mm gypsy suitable for 6mm DIN766, 6mm ISO chains

• 8mm gypsy suitable for 8mm DIN766, 8mm ISO, 5/16” G4, 5/16” BBB chains

• 10mm gypsy suitable for 10mm ISO, 3/8˝ G4, 3/8˝ BBB chains
